Interested in shower drain HRVs? Discover the Joulia Twinline 10P shower drain heat recovery (J6 10P-830 LF). With this shower drain you achieve the highest energy savings. Moreover, the drain is easy to clean. The installer has also been taken into account. The installation is simple and quick.

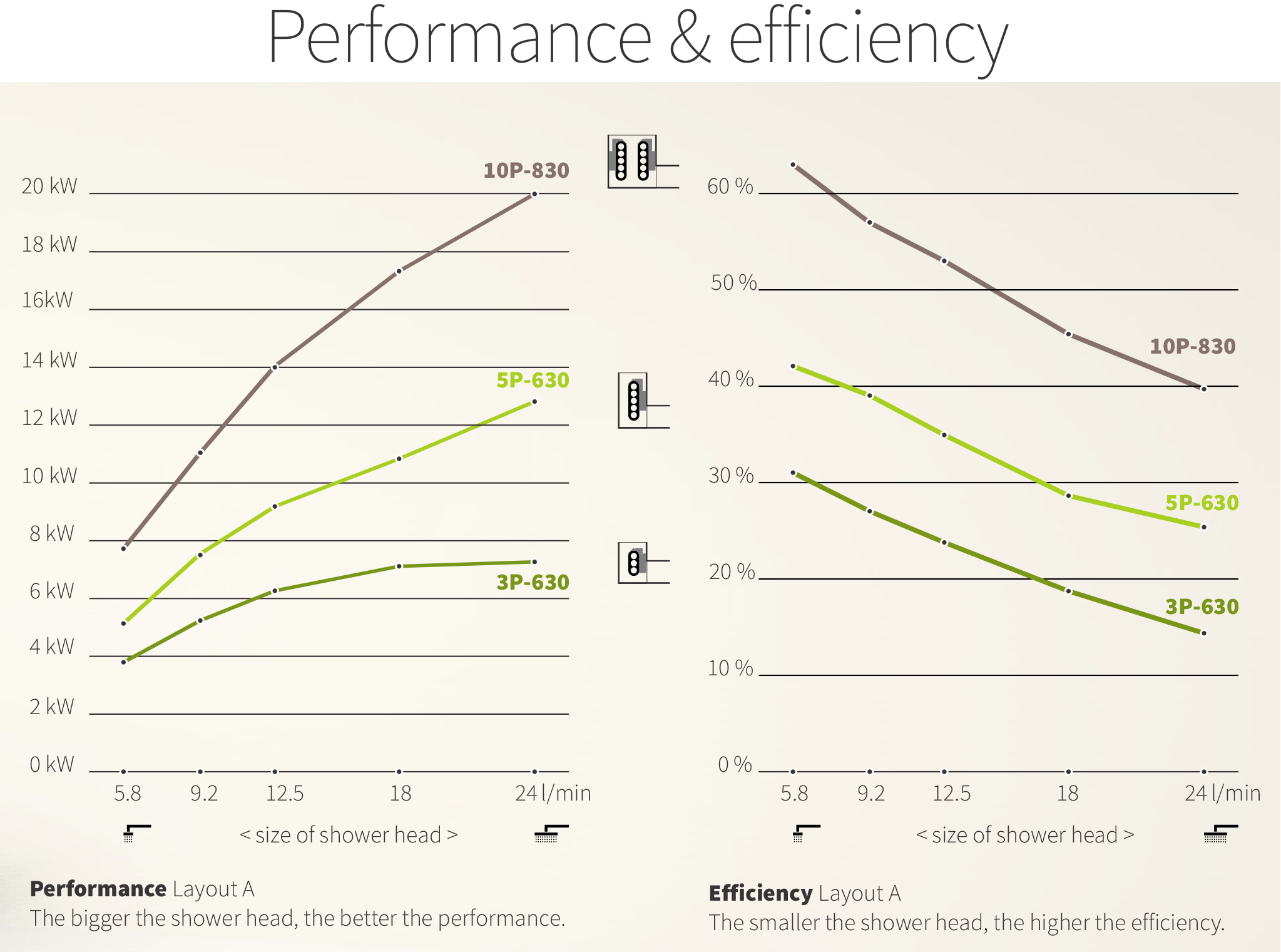

• 55.8% efficiency at 9.2L/min (KIWA)
• 52.0% efficiency at 12.5L/min (KIWA)
• Robust stainless steel housing
• Audited quality declaration BCRG
• Double separation, in accordance with European regulations (NEN 1717)
• Perfect installation dimensions (max. 12cm deep)
• Quick and easy to clean
• Completely demountable / removable heat exchanger
• Additional acoustic leak detection

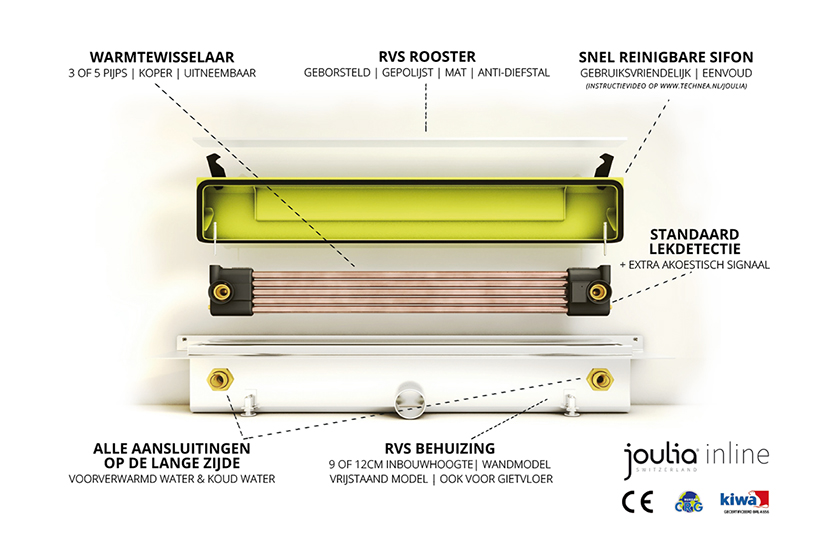

• Simplicity of number of components (grid, siphon, copper heat exchanger and gutter)

JOULIA TWINLINE 10P SHOWER DRAIN-HEATING UNIT

Want to know everything about the Joulia Twinline Inline 10P shower drain heat recovery in 3 minutes? In the product video below, Gabie tells you all about the technical specifications and benefits of our shower drain HRVs .

CERTIFICATES

• KIWA return statement
• Audited quality declaration BCRG
• Joulia is KIWA BRL K656 certified (drinking water safety)
• Double separation, in accordance with European regulations (NEN 1717)
• WRAS approved product
• 16 international awards

INSTALLATION DEPTH

Want to install the Joulia HRV in the structural floor? No problem! The installation depth is only 12cm. This includes an integrated siphon.

REMOVABLE

Would unexpected calamities arise? The shower drain heat recovery unit can then be completely dismantled. You can even remove the copper heat exchanger completely. The copper pipes can then be removed and replaced separately if necessary. So no annoying demolition work!

SECURITY

Do you want certainty? Then Joulia shower drain heat recovery is the solution. In addition to a standard (mandatory) leak detection, the heat exchanger has an additional acoustic leak detection. In the event of an internal leak, the end user will hear a signal as an alarm. The gutter also has an earthing point.

CLEANING SHOWER OUTPUT WTW

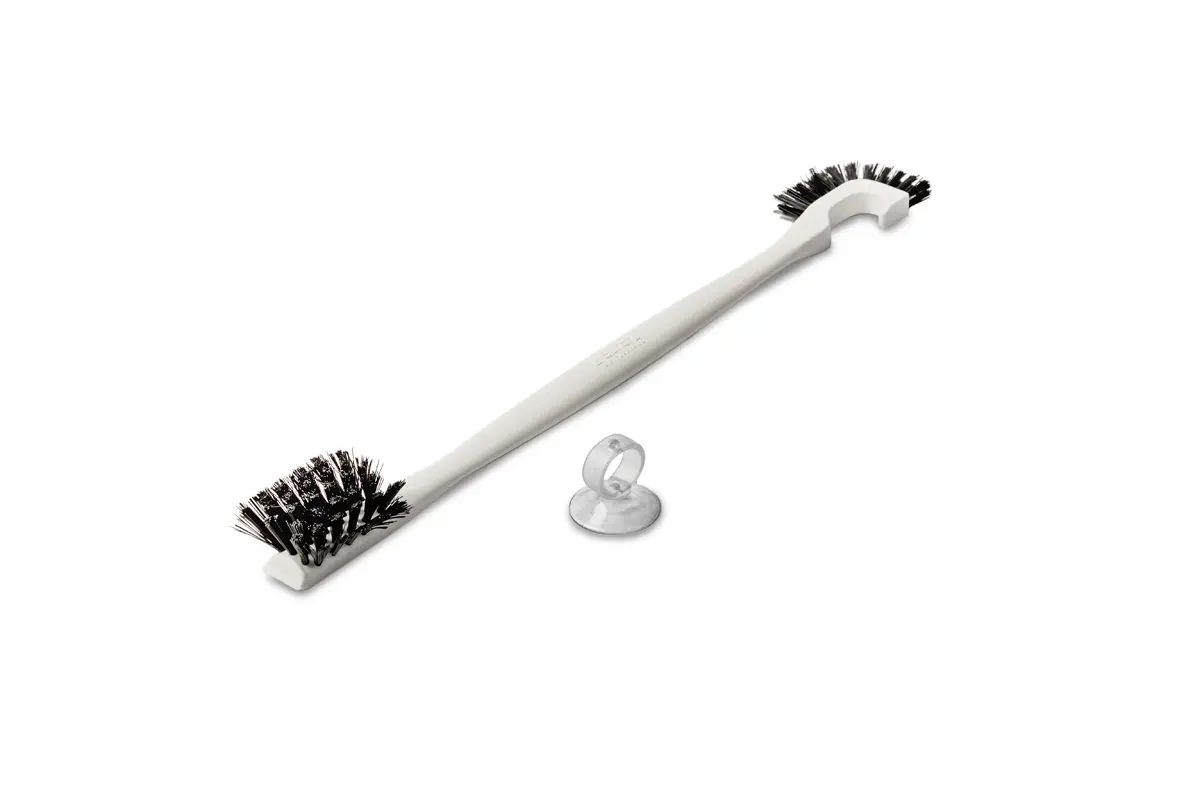

Is user-friendliness an important requirement? The shower drain and heat exchanger are very easy to remove from soap residue and hair. You will also receive a cleaning brush.

WHY HEAT RECOVERY FROM SHOWER WATER?

Saving energy with a shower heat recovery has been a proven sustainable technology for years. However, due to the energy transition, shower heat recovery units will play an even more important role. The technology is often combined with a heat pump for more tap water comfort.

With a gas boiler, the flow of hot tap water is infinite. However, with a heat pump you often have a 150 to 200 liter boiler. The hot tap water in the barrel runs out after a few showers. To have hot tap water available for longer, you can install a larger vessel or install a shower heat recovery unit.

This heat exchanger uses the residual heat from shower water. This heat preheats the cold water towards the cold port of the shower mixer. The water temperature at the cold point rises on average from 10 degrees to 25 degrees. The shower mixer tap needs to draw less hot water from the barrel to reach the desired shower temperature. The barrel is therefore emptied less quickly and the available shower time increases.

• Hot tap water is available for longer with a heat pump
• Lower energy bill
• Less CO2 emissions from a gas boiler
• Interesting contribution in EPC / BENG

WHEN DO YOU INSTALL A WTW SHOWER OUTPUT?

Houses with bathrooms on the ground floor
Apartment complexes or flats where you cannot use a horizontal shower pipe heat recovery system

ALTERNATIVE

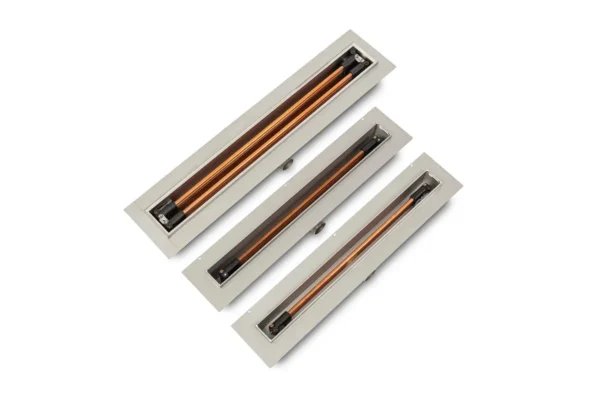

In addition to the 10P shower drain heat recovery, we also have the 5P and 3P. Are you looking for shower pipe HRVs? We are also happy to help you with that.
