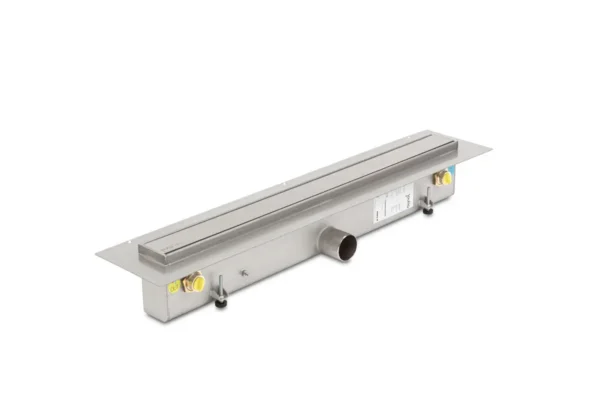

This Joulia Inline shower drain heat exchanger is made of a high-quality stainless steel (AISI 304) housing with a 3-pipe copper heat exchanger. The shower drain is known for its high efficiency, easy cleaning, ease of installation and simplicity.
PRODUCT VIDEO JOULIA INLINE 3P SHOWER DRAIN HEAT RECOVERY
Would you like to know everything about the Joulia Inline 3P shower drain heat recovery within 3 minutes? Our colleague Ron tells all about the technical specifications and advantages of a shower drain heat recovery system .
JOULIA INLINE 3P SHOWER DRAIN HEAT RECOVERY
The shower drain heat recovery is a reliable Swiss product. During production, each gutter is even extensively tested under pressure. In addition, the drain contains no moving parts and is therefore easy to maintain.
- 9cm installation depth
- Wall & freestanding model
- All connections on the long side
- Perfect installation dimensions
- Stainless steel housing
- Various cover grilles (also anti-theft)
- Interesting contribution EPC / BENG
- Extra acoustic leakage detention
CERTIFICATES
- KIWA return statement
- Audited quality declaration by BCRG (formerly ISSO)
- Double-walled watershed in accordance with European legislation (NEN1717)
- Joulia is KIWA BRL K656 certified
- Won 16 international awards
- WRAS approved product
INSTALLATION DEPTH
The 3P shower drain heat recovery from Joulia only has an installation depth of 9cm. This includes an integrated siphon.
REMOVABLE
If unexpected emergencies arise, the shower drain heat exchanger can be completely dismantled. The copper heat exchanger can be completely removed without any demolition work. The copper pipes can also be removed and, if necessary, replaced separately.
SECURITY
Do you want certainty? Then Joulia shower drain heat recovery is the solution. In addition to a standard (mandatory) leak detection, the heat exchanger has an additional acoustic leak detection. In the event of an internal leak, the end user will hear a signal as an alarm. The gutter also has an earthing point.
CLEANING SHOWER DRAIN

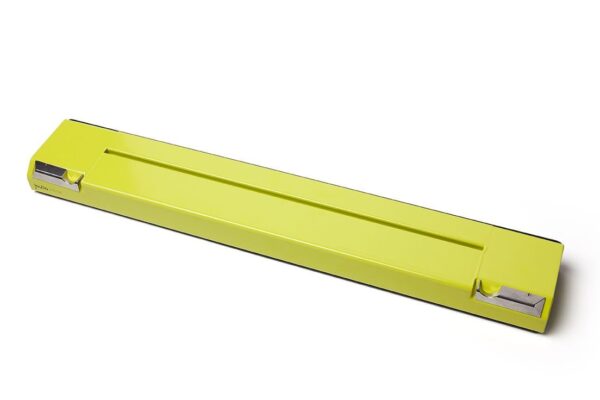

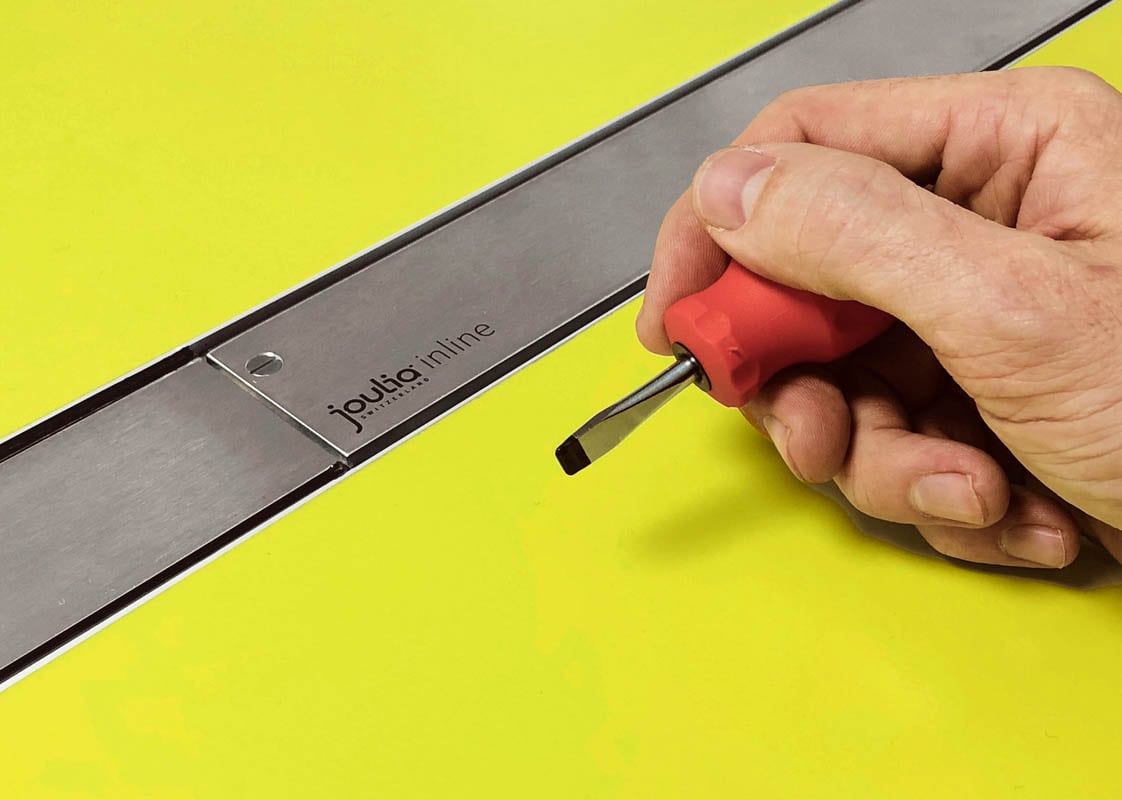

When you shower, you lose body hair and the shower drain becomes contaminated with soap residue. You should therefore clean every shower drain every now and then. Joulia has therefore developed a special grid to prevent pollution as much as possible. If the shower drain needs to be cleaned, you can easily remove the grille. You can quickly clean the container in no time using the included brush.
HOW DOES A SHOWER DRAIN WTW WORK?
With a normal shower drain, warm shower water flows directly to the sewer. However, a shower drain heat exchanger is equipped with a copper heat exchanger. As a result, the hot water first flows over several copper pipes. Cold supply water flows through these pipes and is preheated by the warm residual water. This means that the shower mixer tap needs to mix less hot water to achieve the desired shower temperature.
WHEN TO A SHOWER DRAIN?
- If the bathroom is on the ground floor
- If there is no room for a shower pipe heat recovery system
- In flats/apartment complexes
- If you have little installation depth
INSTALLATION
A shower drain heat recovery:
- is equipped with an EA backflow protection (controllable backflow preventer with integrated ball valve)
- must be placed completely horizontally
- can be combined with a thermostatic shower mixer
ALTERNATIVE JOULIA INLINE 3P SHOWER DRAIN HEAT RECOVERY

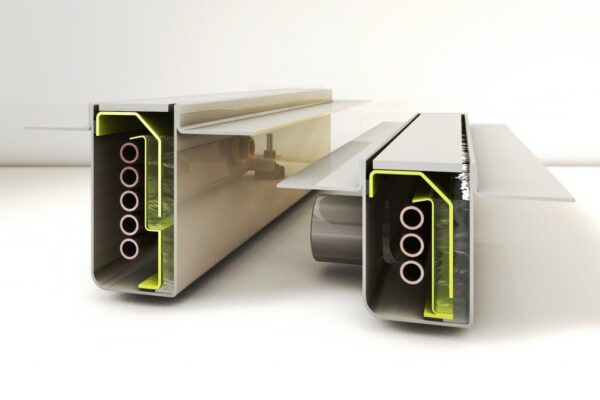

Joulia has three shower drain HRVs available as a wall-mounted or free-standing model. There is also a special variant for cast floors. 10-pipe, 5-pipe, 3-pipe
