A shower pipe heat exchanger is a copper heat exchanger that extracts residual heat from shower water and transfers it to cold supply water. Because the tap water has already been preheated, the central heating boiler needs to supply less energy to take a hot shower. The technology is a perfect addition to a heat pump installation. The heat generator needs to tap less hot water from the storage tank/boiler. The result is that you can make do with a smaller boiler or you can shower longer.
Shower Pipe WTW VX 2100 HF
We have three vertical heat exchangers, including this Shower Pipe WTW VX 2100 HF. This shower pipe is 210cm long and is suitable for a water flow of > 15 litres per minute.
- 10 year product warranty
- Efficiency of 52.6% at 12.5l/min
- Corrosion-free (does not require soldering)
- Red copper heat exchanger is enclosed in plastic PVC-u tube (anti-theft)
- Supplied as standard with connection set and Turbo rotator
- Every tube is extensively tested
- Copper heat exchanger with double separation (in accordance with NEN1717)
- Environmentally friendly: PVC-U outer sheath with reuse guarantee
- The sanitary connections have a very robust ½” female thread with a stainless steel protection ring, so that special brass nipples are no longer required. The usual fittings with conical thread can be mounted directly in the connection. So easy, and the installation remains compact!
- The connections on the drain water side are 50mm smooth; suitable for standard adhesive or cuff connections.
INSTALLER ADVANTAGE
- Easy to install
- Proven technology with high efficiency
- Can be connected directly to the sewerage system
- For new and existing construction
- Higher system efficiency
- Double separation in accordance with European regulations (NEN 1717)
BENEFITS AND ADVISOR
- Significant EPC / BENG reduction
- Audited quality declaration BCRG
BENEFITS END USER
- Good for the environment (less CO2 emissions)
- You can make do with a smaller boiler tank or you can take longer showers
- 30 to 50% energy savings on hot tap water (approximately 100 to 200m³ gas per year)
- Quick payback
- Energy label improvement
- Maintenance-free
- Self-cleaning
INSTALLATION OF Shower Pipe WTW VX 2100 HF
A shower pipe heat recovery:
- provide you with an EA back-flow protection (controllable check valve with integrated ball valve)
- place vertically
- can be installed in combination with a thermostatic shower mixer tap
- must remain accessible in its entirety
- you are not allowed to isolate
- you do not necessarily have to place it directly under the shower (small carry-over is possible)
- can only be connected to the shower drain
TURBO ROTATOR
Our shower pipe HRVs are supplied with a TURBO rotator as standard. This attachment ensures perfect entry of warm shower water and therefore high efficiency. The rotator can be mounted left or right, so that you can easily connect it to the drain pipe from the shower.
MAINTENANCE & CLEANING
- Basically, a shower pipe heat exchanger is maintenance-free and self-cleaning due to the high flow
- In case of additional cleaning, a natural soap-based cleaning agent is preferred

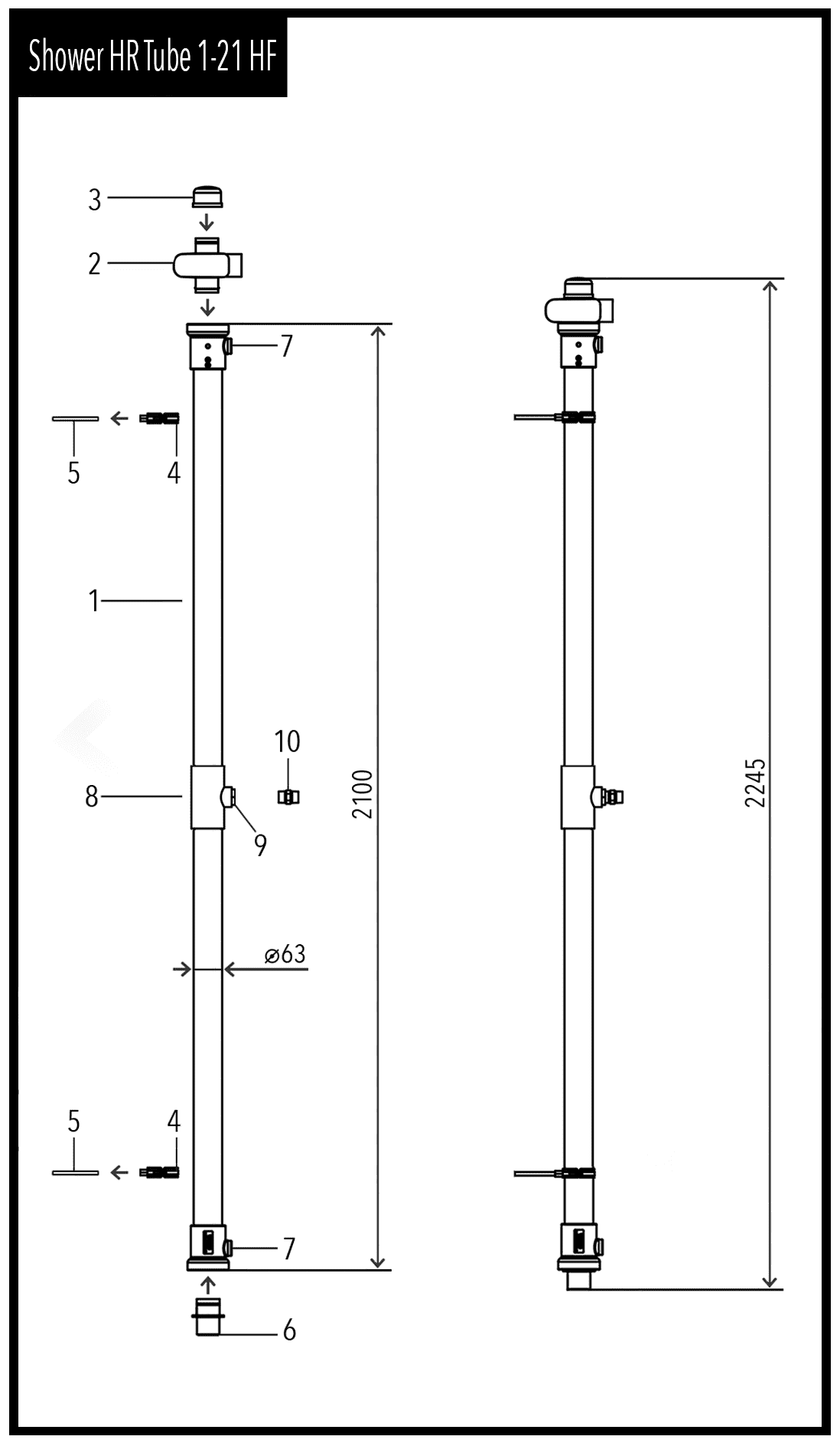

| Pipe size | 2100mm x Ø92mm |
|---|---|
| Total installation length | 2245mm |
| Weight | 8.3 kilos |
| Yield 12.5l/min | 52.6% |
| Pressure loss (9.2 l/min) | 0.10 bar |
| Max. Drinking water volume flow | 30 l/min |
| Max. Volumetric flow of wastewater | 30 l/min |
| Article number: | DW110221HF |
FAQs
Can I connect the bath to the shower heat recovery system?
It is not permitted to connect a bath to a shower pipe heat exchanger. This has to do with the diameter reductions in an appliance pipe, in this case a bathtub.
- The odor trap (I) for a bath has a diameter of ⌀ 4 0mm ;
- The reduced diameter of the wall and floor pipe ( III) is ⌀ 50mm for a bath ;
- The appliance pipe (II) for a bath must be ⌀ 75mm.
It is mandatory that the pipe diameter in the appliance pipe is always increased one step at a time. If you install a shower pipe heat exchanger, it must actually have a diameter of at least ⌀ 75mm, while the shower pipe has a diameter of ⌀ 50mm. So that is too small.
Can I insulate a shower heat recovery unit?
No because of the risks for legionella. Always follow the installation steps in the installation manual.
Do I need to clean a shower pipe heat recovery system?
This is not necessary. Due to the high flow of water, the shower pipe heat exchanger is self-cleaning. Do you still want to clean extra? This can be done by rinsing with soap-based cleaning agents, see the manual for this.
Can I hide the heat exchanger?
The shower pipe is considered a sanitary appliance. It must be accessible without demolition work and replaced if necessary. A screwed panel is usually used;
Should the pipe be placed vertically?
You must mount the tube vertically because of the cyclonic effect inside the tube. Mount the shower pipe heat recovery within <1° vertically. Use a spirit level for this.
Can you connect multiple showers to one shower pipe heat exchanger?
This depends on the maximum water flow. Inquire about the possibilities.
Can the shower pipe heat exchanger be placed in a meter cupboard?
Yes, provided the meter cupboard is compartmentalised during installation.
